Whiskers 2.5D Engine, Magicor WASM, and MCP Playtesting

When I wrote Building A Modern C++ Game Engine from Scratch (Whiskers), the public demo was a space shooter. That was the right “hello graphics pipeline” project. Since then, Whiskers has been reshaped around what I actually want to ship: a 2.5D ECS platformer core, a bundled sample game with an in-engine editor, and a machine-readable debug surface so agents can play-test without pretending to mash keyboard macros in a screen recording.

In parallel, I’ve been porting Magicor—Peter Gebauer’s 2006 public-domain puzzle platformer—from Python/Pygame to C++ on top of Whiskers. The WebAssembly build is live at https://www.magicor.org. Both repos are still in motion; this post is a status snapshot, not a release announcement.

At a glance

• Whiskers Engine — ECS platformer runtime (physics, rendering, level JSON), native SDL2 + OpenGL, optional Emscripten/WASM, Catch2 tests, and a JSON-over-stdio debug protocol compiled in but only active when you pass --debug-protocol.

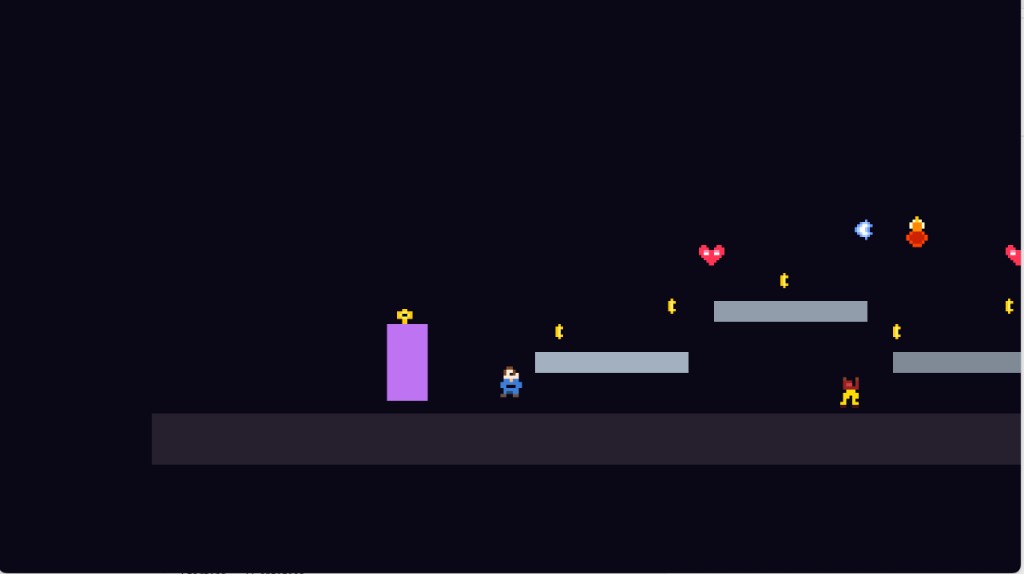

• Platformer demo — Sample game shipped with the engine: combat, pickups, parcel-delivery quest flow, two small levels, and an ImGui editor (toggle with F1).
• Magicor (C++) — Full game port in a separate repo, vendoring Whiskers as a submodule; 75+ levels across five worlds, ice/fire puzzle mechanics, title and level-select UI, native desktop binary, and the same browser artifacts (magicor.html, .js, .wasm, .data).
• Agent playtesting — Optional MCP server (magicor-cpp/tools/mcp_server.py) that launches the native binary with the debug protocol and exposes step_frames, get_state, set_input, and friends to Cursor (or any MCP client). This is the same architectural bet as Agent-Driven Engineering: treat the running game as a forward model, not a video stream.

Whiskers: from space demo to 2.5D platformer

The engine repo (whiskers-engine) is mid-refactor on branch feature/2.5d-platformer-spec. The headline changes:

The platformer demo (platformer_demo / platformer_web) is intentionally a showcase, not the Magicor product. Full games (like Magicor) live in their own repositories and pull Whiskers in as a submodule or CMake package—see specs/platformer-demo.md in the engine tree.

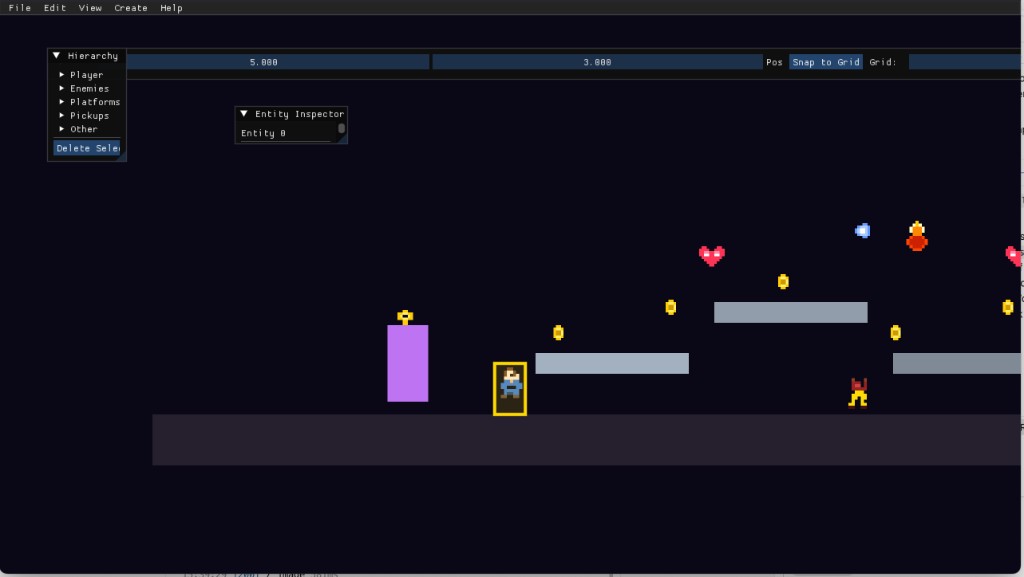

ImGui editor in the platformer demo

Press F1 in the demo to toggle the editor overlay. It is not a separate tool chain; it runs inside the game loop on top of the live GL viewport:

• Viewport picking — click entities in the 3D view; selection highlights draw in-scene.
• Panels — hierarchy, entity inspector, character editor, level tools, tile palette, level browser.
• Toolbar — grid snap, spawn position, Play/Stop to drop back into pure gameplay.
• Pixel Editor — paint sprite frames in ImGui and regenerate textures on the selected entities.
• Level Serializer — save/load/list JSON levels from disk (File → Level Browser, Save, etc.).

Some Create-menu entries are still stubs (enemy archetypes, undo/redo); the workflow that is wired—inspect, spawn, save levels, paint pixels—is what I use to iterate on demo content without leaving the running game.

Press F1 again to hide the overlay and play-test the level as a player.

If you have only seen the old space demo write-up, mentally replace “asteroids in 3D” with “side-scroller with a delivery quest and an editor docked over the framebuffer.”

Debug protocol: agents talk to the sim, not the screen

Whiskers can be built with WHISKERS_DEBUG_PROTOCOL=ON (default on native). At runtime nothing listens until you start the binary with:

platformer_demo --debug-protocol [--headless]

Then the game speaks one JSON object per line on stdin/stdout: commands like get_state, set_input, input_frame, step, load_level, screenshot, get_physics_debug, pause, resume, quit. Decorative stdout is suppressed so every line parses cleanly.

Design goals (from specs/testing-debug-protocol.md):

1. LLM agents can play-test programmatically (deterministic step, not wall-clock sleeps).
2. Integration tests assert physics, collisions, and level load via Catch2 + ctest.
3. CI can run headless on every PR.

get_state returns entity indices, types, positions, velocities, health, and collider bounds. screenshot returns a base64 PNG after the next full render—useful when you want visual confirmation without hooking OS-level capture APIs.

The protocol is optional at runtime on purpose: shipping builds and casual players never pay for a stdin thread or JSON parsing unless they opt in.

Magicor in C++ and in the browser

Magicor is a tile-based puzzle platformer: extinguish every fire, avoid hazards, manipulate ice (create, break, bridge, wall-stick rules), and use tubes—all across Egypt, Forest, Pompei, Snow, and Space (15 levels per world in the original data set).

The C++ port (magicor-cpp) vendors Whiskers and implements Magicor-specific systems on top: ice slide/support, fire gravity, orb collection, hazard damage, win flow back to level select, and enriched debug snapshots (fires_remaining, feet_tile, level_complete, etc.) when the protocol is on.

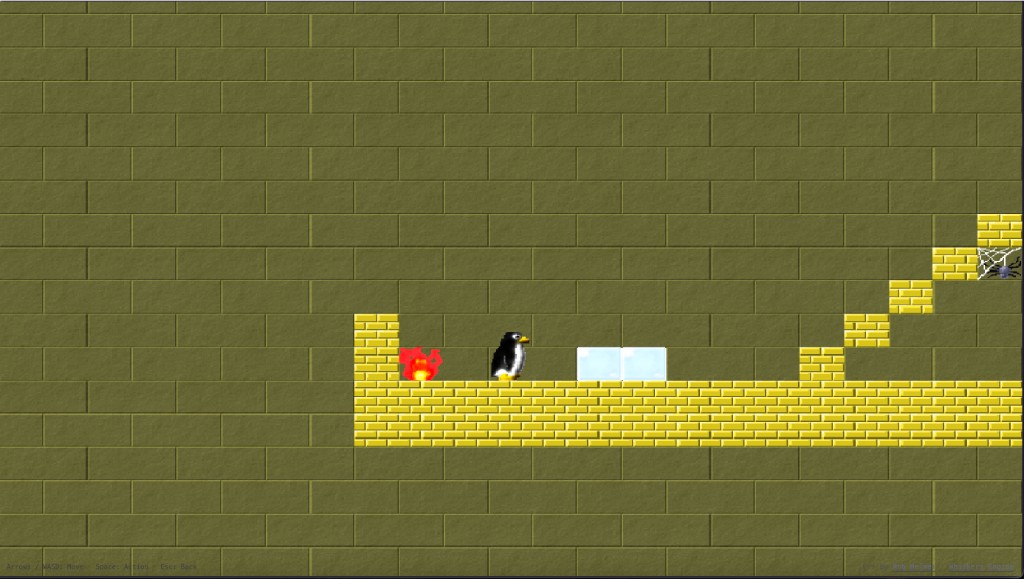

WASM on magicor.org

The wasm preset produces:

• magicor.html, magicor.js, magicor.wasm, magicor.data (preloaded assets/data)

Serve over http:// (not file://). The production site at https://www.magicor.org hosts those artifacts; my site redirects /magicor there as well.

Recent port work has been unglamorous but visible in play: ice parity with the Python original (wall-stick only on one-sided walls, no stick over fire/lava, horizontal run caps, support under player-created ice). Batch playtests (tools/playtest_levels.py) walk every level from spawn and optionally run a greedy “try to put out fires” policy—honestly still a heuristic, not a solver; see specs/PLAYTEST_AND_SOLVER.md for where search/planning might go next.

MCP playtest bridge (optional)

Native Magicor (and the platformer demo binary, if you point env vars at it) can be driven from Python:

Configure in Cursor’s MCP settings (example from the script header):

"magicor-playtest": {
  "command": "/path/to/magicor-cpp/tools/.venv-mcp/bin/python",
  "args": ["/path/to/magicor-cpp/tools/mcp_server.py"],
  "env": { "MAGICOR_BOOT_LEVEL": "levels/egypt/egypt-03.lvl" }
}

Typical agent loop: start_game → set_input / step_frames → get_state → repeat. For Magicor, map attack to ice manipulation and use jump for tubes—the README in the port repo documents the axis/action mapping.

WASM builds do not expose the stdio protocol in the browser (no practical stdin for a tab). Agent playtesting today means native binary + MCP, or Chrome DevTools MCP for manual inspection of the live site—not the same integration, but enough to catch WebGL/sandbox issues.

This connects directly to the workflow in Agent-Driven Engineering: specs and tools stay stable; the hosting contract changes per target (Lambda for Hermes, stdio JSON for Whiskers/Magicor, CDP for web games).

Architecture (today)

flowchart LR
  subgraph whiskers ["Whiskers Engine"]
    ECS[ECS + Physics]
  end
  subgraph demos ["Demos / games"]
    PD[platformer_demo + ImGui editor]
    MG[magicor native / WASM]
  end
  subgraph agents ["Optional agents"]
    MCP[mcp_server.py]
    PT[playtest_levels.py]
  end
  ECS --> PD
  ECS --> MG
  MCP -->|stdio JSON| MG
  PT -->|subprocess| MG
  MG -->|deploy| WEB[www.magicor.org]

What’s still in progress

• Engine: finish 2.5D spec items (editor Create menu, broader test coverage, polish WASM path for platformer_web).
• Magicor: ice/fire edge cases, level parity audits, smarter search than the current greedy --solve policy.
• Editor: undo/redo and more entity templates wired to spawn APIs.
• Agents: richer MCP tools (level sweep reports in CI), without conflating heuristic playtests with “solved.”

Neither repo is tagging a 1.0 yet. The interesting milestone is already real: same engine, desktop debuggability, browser shipping, and an agent-facing protocol when you want continuous agency on game logic—not just on TypeScript.

Repos and links

• Whiskers Engine: github.com/rhelmer/whiskers-engine (branch feature/2.5d-platformer-spec)
• Magicor C++ port: github.com/rhelmer/magicor-cpp
• Play in browser: https://www.magicor.org
• Earlier engine post: Building A Modern C++ Game Engine from Scratch (Whiskers)
• Agent workflow: Agent-Driven Engineering
